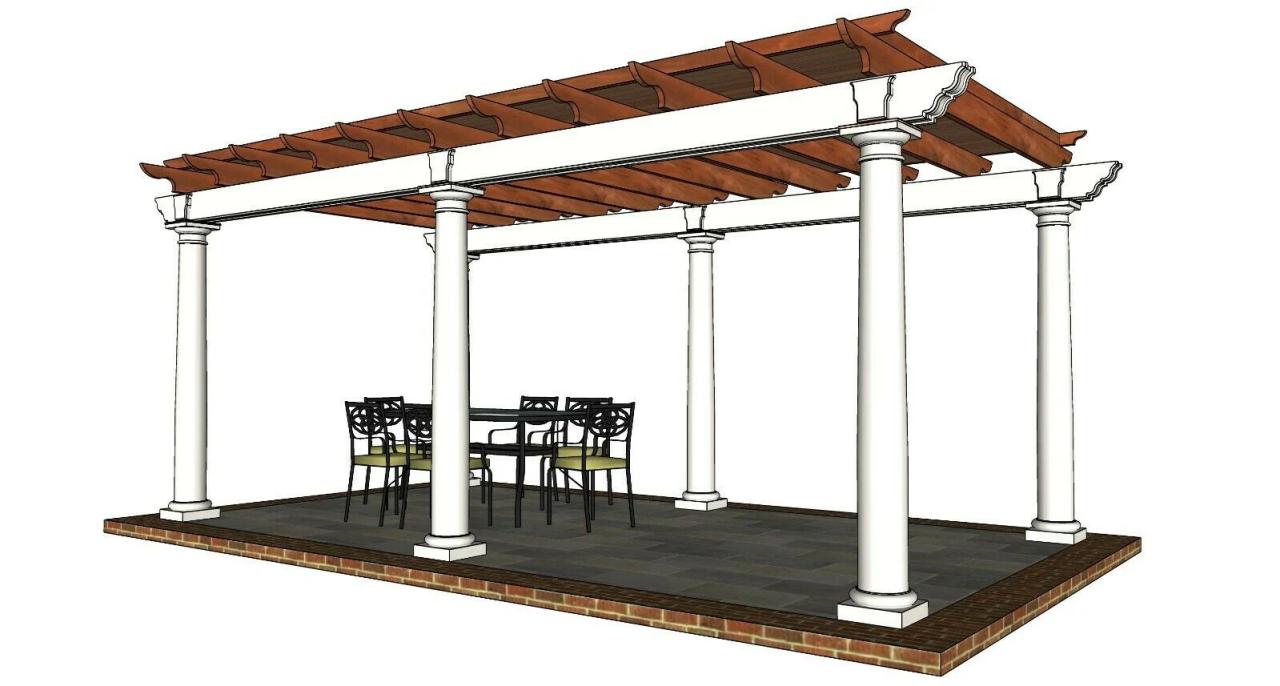

Freestanding Pergola: A freestanding fiberglass pergola is not attached to the building and requires at least four structural fiberglass posts for support.

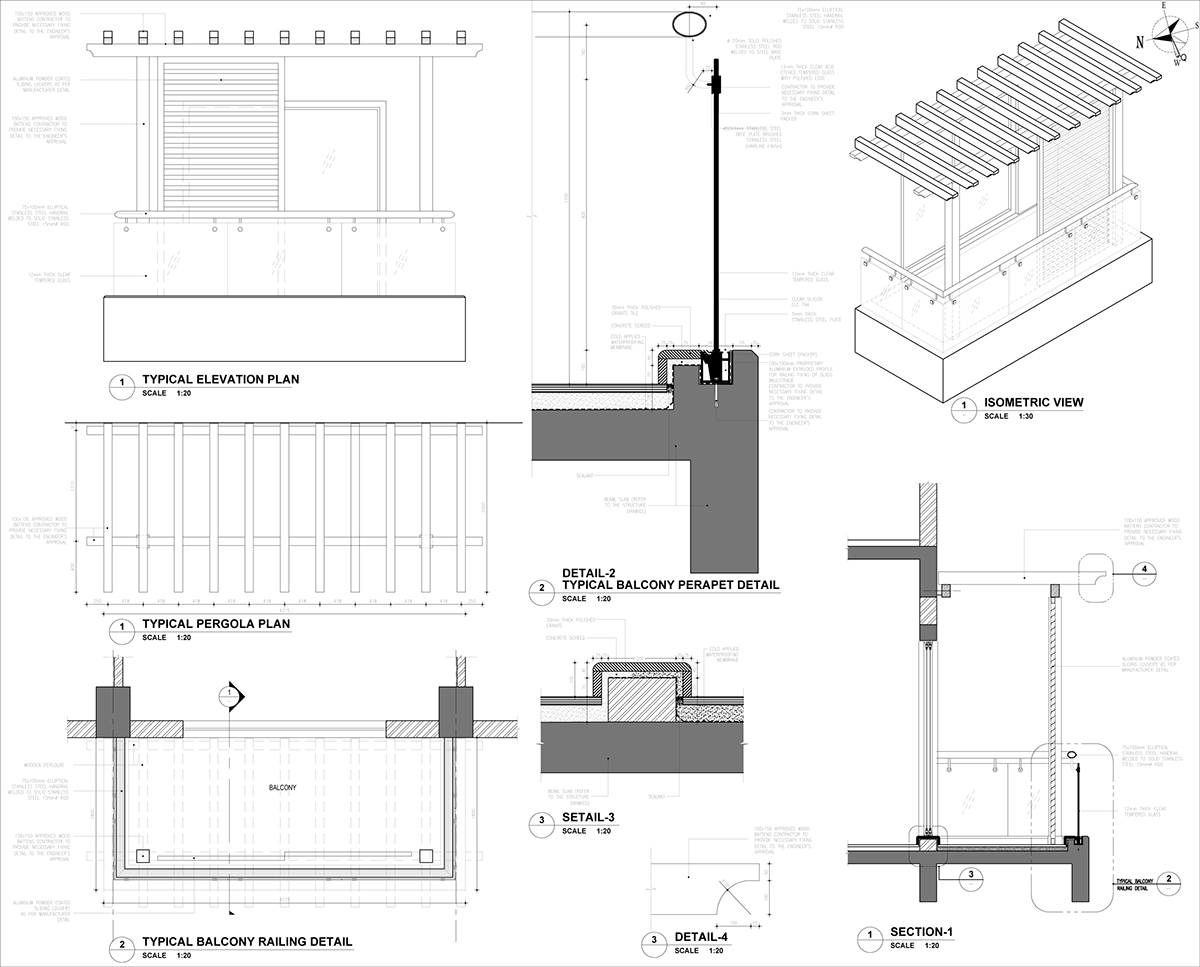

Pergola Elevation

Attached Pergola: An attached fiberglass pergola is attached to an existing structure with a custom-made fiberglass main plate and is supported by at least two structural fiberglass posts.

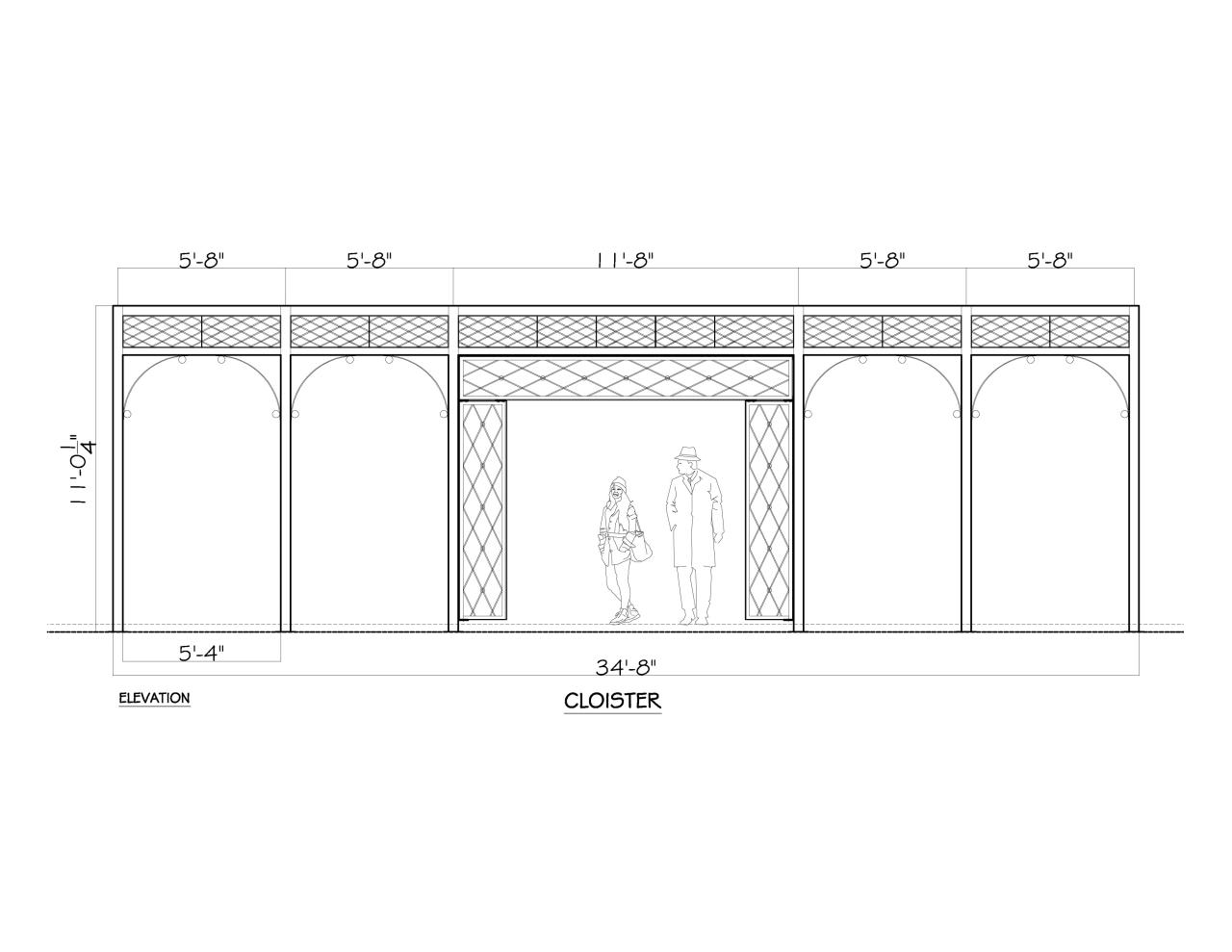

Elevation Design With Pergola (see Description)

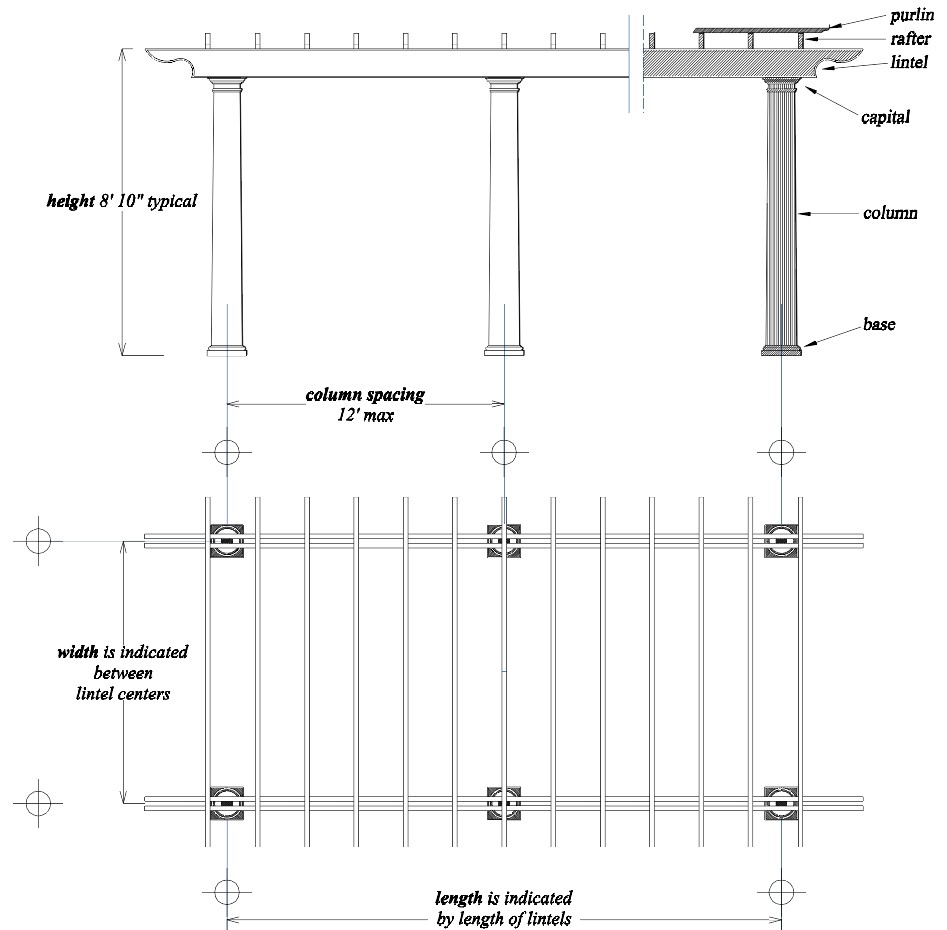

Freestanding Pergola: Below is an example of a site plan for a free standing pergola, the squares at each corner represent the posts. To get the correct dimensions, you need to measure the centers of the posts. The 144 inch scale below is an example of this. Using 10 inch cardboard cutouts on your patio can be helpful. Please note that our standard overlap from center to post is 24″ so you will need to account for any space limitations. For example, a pergola with 10×10′ post centers will have a total size of 14×14″.

Additional Pergola: Below is an example of a site plan for an attached pergola. Small squares indicate poles, and the line marked in the house is the house. Measurements are made between posts in post centers and from home to post. Our pergolas typically have 24-inch beams and joists, which is within the overall dimensions. For example, a 12×12′ pergola is generally 14×16′ in size. In other words, the joists are 14′ long because they only hang on one end, and the joists are 16′ long because they hang on both sides. When measuring, measurements are taken from the center of the columns. Usually our pergolas are 8 to 10 under the beam. Specify how tall you want the pergola to be and remember to measure the height of any windows and doors that may interfere with the paneling, which requires a clearance of at least 8 inches tall.

2×8″ Real Fiberglass Beams: Our 2×8″ real double fiberglass beams are our standard offering. They allow up to 19 feet of free pole-to-pole length and can legally be used as wire conduits in most states.

Bon Pergola Weatherproof Motorized Louvered Pergola With Lighting

REAL FIBERGLASS BEAMS 4×12″: Our solid 4×12″ beams are perfectly balanced and leave a statement. If you are looking for a structure with a more “presence” feel, these beams are for you. Capable of reaching 22 feet of free width, these beams allow for plenty of unobstructed space.

A critical aspect during the pergola design phase is ensuring adequate mounting space to accommodate the structural fiberglass poles. Our poles cannot rest on grass, gravel, soil or stone. Concrete footings or concrete slabs are required for proper placement of any pergola and are key to prevent height and structural stability. Both freestanding and attached pergolas can support a pergola as long as they are structurally sound. If footings or plates are used, an 8″ long 5/8″ threaded stainless steel rod is screwed into the footing or plate and then connected to another threaded stainless steel rod that goes to the top of each post and provides height protection.

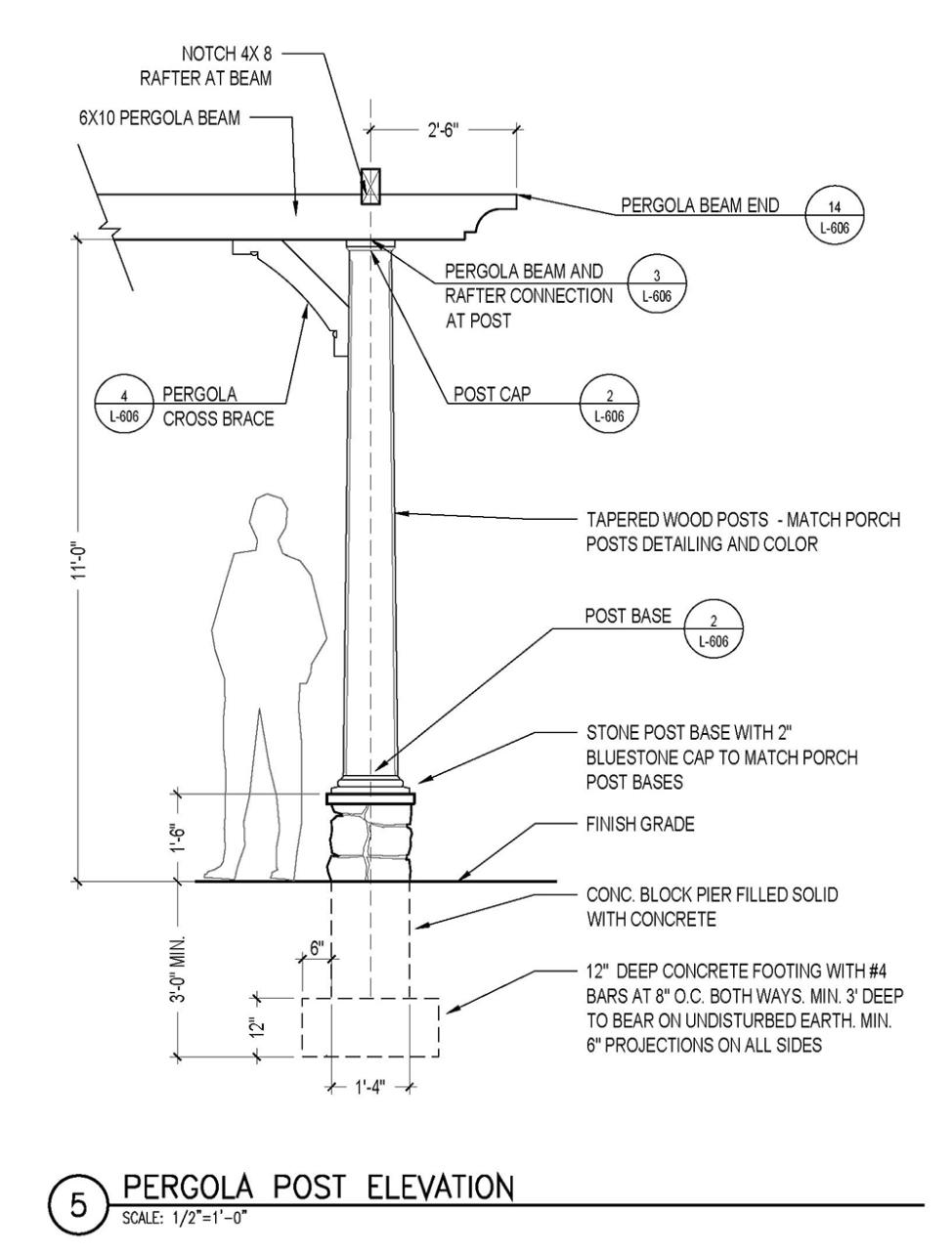

Concrete Sub-Foundations: When concrete sub-foundations are used, we recommend a sono pipe sub-foundation of at least 14 inches in diameter. The post should be at least 36 inches deep or to the frost line. Local regulations vary from city to state and may require more in-depth background. The 5/8 stainless steel threaded rod can be soaked in concrete or exposed later.

16 Stunning Elevation Designs That Are Strikingly Modern

Concrete Paving: When concrete paving is used, we recommend a minimum 3.5 inch thick and shallow base at each post location. Local regulations vary by city and state and may require a thicker panel. The 5/8 stainless steel threaded rod can be soaked in concrete or exposed later.

Masonry Columns: A footing is required under the footing column or concrete filled wall. It is preferable to install a wet rod on the base of the sono pipe. Some information we need:

Masonry Columns: While a foundation is still required in this alternative configuration, the threaded rod can be wet-set into the concrete inside the column or bonded later with epoxy. We want the post to be attached to the base of the sono pipe with rebar #5.

Garden Structure Designs Including Pergolas, Pavilions & Trellis

Deck Mounting: When mounting a pergola to a deck, structural aluminum deck mounting panels are required and are provided by Baldwin Pergolas. A 5/8-inch stainless steel threaded rod runs from the deck mounting plates to the top of each post and prevents it from lifting. The siding must be structurally sound and free of signs of decay. We do not recommend planting it on a composite floor because it can be easily separated. This post describes how to easily DIY a pergola on a concrete patio with a modern wood paneled privacy wall!
